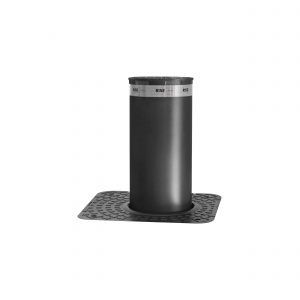

Automatic hydraulic bollard 230 Vac, thickness 6-10 mm. Cataphoresis treatment and “Graphite Black” painting or cover in brushed AISI316 stainless steel.
• Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time
• Foundation box complying with the EN124 (40T) regulation and independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance
• In the event of a power failure, the bollard will remain in the raised position (manual release)
• Heating for the foundation box, buzzer and pressure switch for obstacle detection available as accessories
| Cylinder height | 600 mm |
| Cylinder diameter | 275 mm |
| Raising time | 3 s |
| Lowering time | 3 s |
| Power Supply | 230 Vac - 50/60 Hz (control panel with different voltages available on request) |
| Power consumption | 550W |
| Hydraulic pump | Built-in |
| Load index (EN124) | D400 (40 tonnes) |
| Operation in case of power failure | Manual release |
| Automatic lowering cycle in case of power failure | Yes (with GL.AL) |
| Obstacle detection during the rising cycle | Optional (GL.PRES) |
| Capacitor | 25 μF |
| Daily cycles | 3.500 |
| MCBF | 3.000.000 |
| Impact resistance | 40.000 J |
| Breakout resistance | 250.000 J |
| Operating temperature | -40°C ÷ +60°C [GL.HEAT available as option for temperatures lower than -10°] |
| Protection level | IP67 |
| Weight | 99 kg |
| Product Leaflet | SPARTACUS |
 |
MAX.CP BL230 Vac 50/60 Hz power supply | Control panel for 1 or 2 hydraulic bollards SPARTACUS | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Parameter and operation logic regulations through integrated LCD display | Automatic, semi-automatic and deadman’s logic | Programming access password | Equipped with step-by-step command inputs separate for each bollard and centralised command inputs ALL UP and ALL DOWN for the raising and the lowering of both bollards | Built-in board to manage buzzer/LED lights | Separate limit switch inputs for each motor | Control inputs for loop detectors and protection devices (GL.PRES) | 2 outputs configurable as bollard status indicator | Protection level IP54 |
 |
CA275/600Foundation box. |
 |
GL.TOP275Cover for foundation box CA275/600. |
 |
GL.BUZZBuzzer. |
 |
GL.CABLE12Cable FG12 12x1.5 mmq. |
 |
GL.CABLE16Cable FG16 16x1.5 mmq. |
 |
GL.HEATHeater for hydraulic bollard, active below 5 °C. |
 |
GL.PKEYPersonalised release key. |
 |
GL.PRESPressure switch for obstacle detection. |
 |
GL.ALDevice that allows an automatic lowering maneuver. |
 |
XLB.ALBox for up to 4 GL.AL. |
