SPARTACUS 275-800 R/I

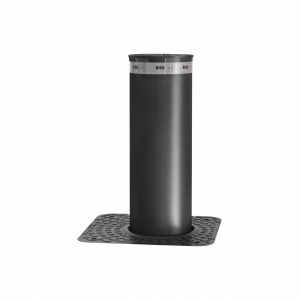

https://www.riseweb.it/img/product/md_ddea6d63d38f0260857aa215a8dc37c6/jpg/spartacus-275-800-r-i-powder-steel-rise-srl.jpg SPARTACUS 275-800 R/I

SPARTACUS 275-800 R/I

Automatic hydraulic bollard 230 vac. Cataphoresis treatment and “Graphite Black” painting or cover in brushed AISI316 stainless steel.


Finishing




• Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time

• Foundation box complying with the EN124 (40T) regulation and independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance

• In the event of a power failure, the bollard will remain in the raised position (manual release)

• Heating for the foundation box, buzzer and pressure switch for obstacle detection available as accessories

Product specifications: SPARTACUS 275-800 R/I

Cylinder height800 mm
Cylinder diameter275 mm
Raising time4 s
Lowering time4 s
Power Supply230 Vac - 50/60 Hz (control panel with different voltages available on request)
Power consumption550 W
Hydraulic pumpBuilt-in
Load index (EN124)D400 (40 tonnes)
Manual lowering cycle in case of power failureManual release
Automatic lowering cycle in case of power failureOptional
Obstacle detection during the rising cycleOptional (GL.PRES)
Capacitor25 μF
Daily cycles3,500
MCBF3,000,000
Impact resistance60,000 J
Breakout resistance400,000 J
Operating temperature-40°C ÷ +60°C [GL.HEAT available as option for temperatures lower than -10°]
Protection levelIP67
Weight (without foundation box)124/131 kg

Documents: SPARTACUS 275-800 R/I

Product Leaflet | SPARTACUS
MAX.CP

MAX.CP

Control panel for 2 hydraulic bollards | 230 Vac 50/60 Hz power supply | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Parameter and operation logic regulations through integrated LCD display | Automatic, semi-automatic and deadman’s logic | Programming access password | Equipped with step-by-step command inputs separate for each bollard and centralised command inputs ALL UP and ALL DOWN for the raising and the lowering of both bollards | Version with built-in board to manage buzzer/LED lights available (MAX.CP BL) | Separate limit switch inputs for each motor | Control inputs for loop detectors and protection devices (GL.PRES) | 2 outputs configurable as bollard status indicator or command of the optional board CP.BL | Designed for the connection of the optional board CP.BL to manage signal lights and the warning buzzer GL.BUZZ | Protection level IP54

CP.BL

CP.BL

Board for buzzer and LED buzzer management.

CA275/800

CA275/800

Foundation box.

GL.BUZZ

GL.BUZZ

Buzzer.

GL.CABLE

GL.CABLE

Cable FG16 16 x 1.5 for hydraulic bollard.

GL.HEAT

GL.HEAT

Heater for hydraulic bollard, active below 5 °C.

GL.PRES

GL.PRES

Pressure switch for obstacle detection.
