• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP/IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm
• PLUG&PLAY Connection between bollard and control panel
• EN124 (40T) Top equipped with LED lights

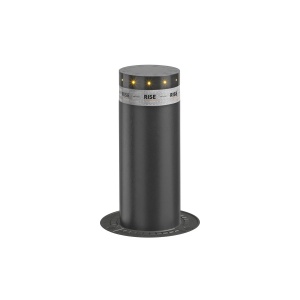

Product specifications: VIGILANT500/I OM.
Cylinder height | 500 mm |
Cylinder diameter | 200 mm |
Raising time | 4 s |
Lowering time | 3 s |
Power Supply | 230 Vac / 50/60 Hz |
Motor supply | 24 Vdc |
Absorbed current | 6 A |
Absorbed power | 90 W |
Standby consumption | 10 W |
Consumption during rising | 1 A |
Daily cycles | 1,200 |
Impact resistance | 11.000 J |
Breakout resistance | 180.000 J |
Operating temperature | -20°C / +50°C |
Protection level | IP68 |
Electric Brake | 5 N |
Weight (without foundation box) | 84/90 kg |
|
CP1 OMOLOGATA Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
CP1K OMOLOGATA Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
CP2 OMOLOGATA Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
CP2K OMOLOGATA [9176912] Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
CP4 OMOLOGATA Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
CP4K OMOLOGATA Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command |
|
LD1/LD2 Metal detector safety device, sigle channel (LD1), double channel (LD2). |
|
L50 Cable for loop (50m). |
|
SIR1 Dual-tone sirens detector of the type used by emergency vehicles. It send a command to drop the bollard in the presence of active sirens. |
|
RES Heating resistance for cold areas (accessory supplied pre-assembled). |
|
BUZZ Warning buzzer (accessory supplied pre-assembled). |
|
KTOOLS Set of installation tools. |
|
CA500A Foundation box in steel with cataphoresis treatment for VIGILANT 500 / HYDRA 500. Quick assembly with screws. |
|
TOP20 Cover for foundation box. |
|
C05/10/15/20/25 Cable with connector L= 5/10/15/20/25 m. |
