Bollards / Control Panels

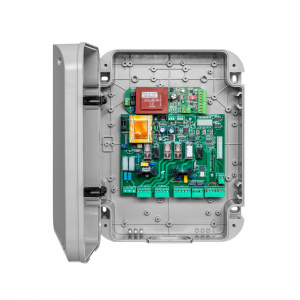

MAX.CP BL

MAX.CP BL

230 Vac 50/60 Hz power supply | Control panel for 1 or 2 hydraulic bollards SPARTACUS | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Parameter and operation logic regulations through integrated LCD display | Automatic, semi-automatic and deadman’s logic | Programming access password | Equipped with step-by-step command inputs separate for each bollard and centralised command inputs ALL UP and ALL DOWN for the raising and the lowering of both bollards | Built-in board to manage buzzer/LED lights | Separate limit switch inputs for each motor | Control inputs for loop detectors and protection devices (GL.PRES) | 2 outputs configurable as bollard status indicator | Protection level IP54

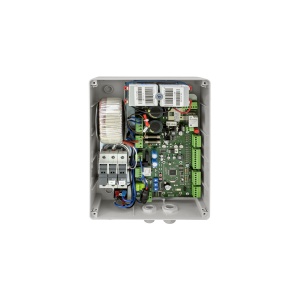

CP1

CP1

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP1K

CP1K

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP1 OMOLOGATA

CP1 OMOLOGATA

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

CP1K OMOLOGATA

CP1K OMOLOGATA

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

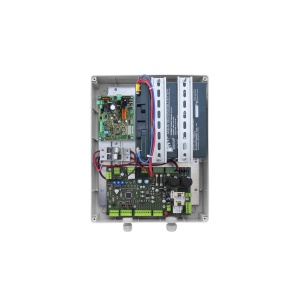

CP1KSUN

CP1KSUN

Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP1KSUN by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command / Equipped with 2x18Ah batteries 24Vdc 6.5÷ 50 Ah Pb

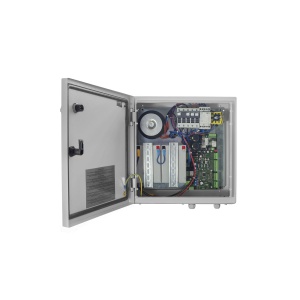

CP1S

CP1S

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP1SK

CP1SK

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP2

CP2

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP2K

CP2K

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

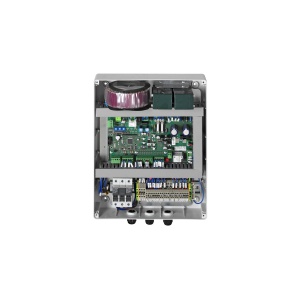

CP2 OMOLOGATA

CP2 OMOLOGATA

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

CP2K OMOLOGATA

CP2K OMOLOGATA

[9176912] Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

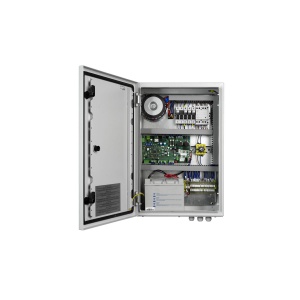

CP2S

CP2S

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP2SK

CP2SK

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP4

CP4

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

CP4K

CP4K

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

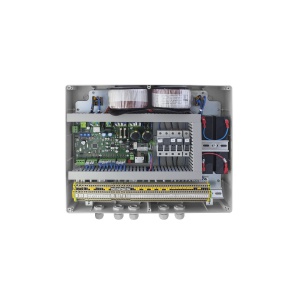

CP4 OMOLOGATA

CP4 OMOLOGATA

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

CP4K OMOLOGATA

CP4K OMOLOGATA

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with AUT device for the automatic lowering in case of power failure / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / Prepared for any kind of command

CP4S

CP4S

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command

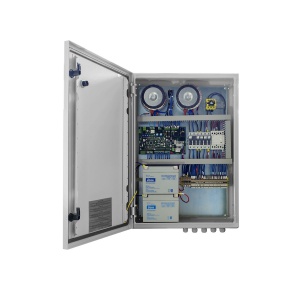

CP4SK

CP4SK

Power supply: 230/250 Vac - 50/60 Hz - transformer with selectable voltage / Equipped with command ALL UP / ALL DOWN / 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V / 8-Dip switch programmable for different configurations / Diagnostic LED / Connection to Ethernet network via TCP / IP LAN / Communication between the central bollard and central CP by means of the RS485 communication bus / Version with batteries for automatic operation during power failure / Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights) / 6 different configurations for loop detectors / Prepared for any kind of command
