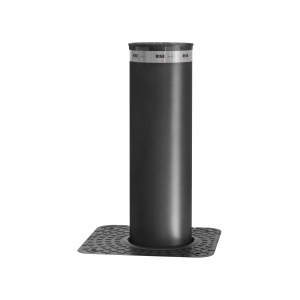

Automatic, hydraulic, certified, anti-terrorism bollard, able to withstand an impact with a vehicle of 7500 kg launched at a speed of 48 km/h. Cataphoresis treatment and “Graphite Black” painting or cover in brushed AISI316 stainless steel.
• Dynamic vehicle penetration: -0.8 m
• Emergency function E.F.O. (Emergency Fast Operation) allows a fast raising in 1.5 seconds
• Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time
• Foundation box complying with the EN124 (40T) regulation and independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance
• In the event of a power failure, the bollard will remain in the raised position (manual release)
• Heating for the foundation box and buzzer available as accessories
• SUGGESTED USE IN: Company or factory access driveways | Embassies | Police stations | Military bases | Ministerial buildings | Sensitive sites
| Cylinder height | 900 mm |
| Cylinder diameter | 275 mm |
| Raising time | 4.5 s |
| Lowering time | 4.5 s |
| Power Supply | 230 Vac - 50/60 Hz (control panel with different voltages available on request) |
| Power consumption | 1,000 W |
| Hydraulic pump | Built-in |
| Load index (EN124) | D400 (40 tonnes) |
| Manual lowering cycle in case of power failure | Manual release under the box cover |
| Emergency fast operation (E.F.O.) | Built-in |
| Emergency rising time | 1.5 s |
| Capacitor | 50 μF |
| Daily cycles | 3,500 |
| MCBF | 3,000,000 |
| Certifications | IWA 14-1:2013 V/7200 [N3C] /48/90: -0.8 | PAS68:2013 V/7500 [N3] /48/90: -0.5 | ASTM F2656 Rating C730/7200 - P1 |
| Impact resistance | 250,000 J |
| Breakout resistance | 850,000 J |
| Operating temperature | -40°C ÷ +60°C [GL.HEAT available as option for temperatures lower than -10°] |
| Protection level | IP67 |
| Weight (without foundation box) | 348 kg (358 kg MAX M30 EFO-I) |
| Product Leaflet | MAXIMUM M30 |
 |
MAX.CP BL230 Vac 50/60 Hz power supply | Control panel for 1 or 2 hydraulic bollards SPARTACUS | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Parameter and operation logic regulations through integrated LCD display | Automatic, semi-automatic and deadman’s logic | Programming access password | Equipped with step-by-step command inputs separate for each bollard and centralised command inputs ALL UP and ALL DOWN for the raising and the lowering of both bollards | Built-in board to manage buzzer/LED lights | Separate limit switch inputs for each motor | Control inputs for loop detectors and protection devices (GL.PRES) | 2 outputs configurable as bollard status indicator | Protection level IP54 |
 |
CA.M30Foundation case made of galvanised steel and cast iron. |
 |
GL.TOPM30Cover for foundation box CA.M30. |
 |
GL.BUZZBuzzer. |
 |
GL.CABLE12Cable FG12 12x1.5 mmq. |
 |
GL.CABLE16Cable FG16 16x1.5 mmq. |
 |
GL.HEATHeater for hydraulic bollard, active below 5 °C. |
 |
GL.PKEY M30Burglarproof screws. |
