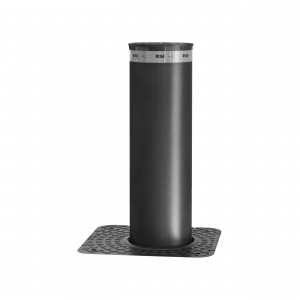

Automatic, hydraulic bollard MAXIMUM M30/I
External cylinder diameter
275 mm
Above-ground height
900 mm
Cylinder thickness
Powder: 10 mm Stainless: 11,2 mm
High impact resistance
Suitable for access protection
Anti-terrorism bollard
ISO 22343-1:2023 - Supersedes: IWA 14-1:2013 PAS68:2013 V/7500 [N3] /48/90: -0.5 ASTM F2656 Rating C730/7200 - P1
MAXIMUM M30/I
• Automatic, hydraulic bollard, certified M30 (K4), able to withstand an impact with a vehicle of 7500 kg launched at a speed of 48 km/h
• Dynamic vehicle penetration: P1 (-0.8 m)
• Cataphoresis treatment and “Graphite Black” quartz painting or cover in brushed AISI316 stainless steel
• Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time
• Foundation box complying with the EN124 (40T) for the passage of heavy vehicles
• Regulation and independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance
• Accessible hydraulic components
• High-performance hydraulic pump for high lifting/lowering speed and up to 3,500 cycles per day
• In the event of a power failure, the bollard will remain in the raised position (manual release)
• Heating for the foundation box and buzzer available as accessories
• SUGGESTED USE IN: Company or factory access driveways | Embassies | Police stations | Military bases | Ministerial buildings | Sensitive sites
| Cylinder height | 900 mm |
| Cylinder diameter | 275 mm |
| Cylinder thickness | 10 mm (+1,2 mm MAX/I) |
| Raising time | 4.5 s |
| Lowering time | 4.5 s |
| Power Supply | 230 Vac - 50/60 Hz (control panel with different voltages available on request) |
| Power consumption | 1,000 W |
| Hydraulic pump | Built-in |
| Load index (EN124) | D400 (40 tonnes) |
| Manual lowering cycle in case of power failure | Manual release under the box cover |
| Emergency fast operation (E.F.O.) | NO |
| Emergency rising time | N/A |
| Capacitor | 31.5 μF |
| Daily cycles | 3,500 |
| MCBF | 3,000,000 |
| Certifications | IWA 14-1:2013 V/7200 [N3C] /48/90: -0.8 | PAS68:2013 V/7500 [N3] /48/90: -0.5 | ASTM F2656 Rating C730/7200 - P1 |
| Impact resistance | 250,000 J |
| Breakout resistance | 850,000 J |
| Operating temperature | -40°C ÷ +60°C [GL.HEAT available as option for temperatures lower than -10°] |
| Protection level | IP67 |
| Weight (without foundation box) | 340 kg (350 kg MAX M30-I) |
 | MAX.CP BLControl panel for 2 hydraulic bollards 230 Vac |
 | CA.M30Foundation box made of galvanised steel and cast iron (can be shipped separately). |
 | GL.TOPM30Cover for foundation box CA.M30. |
 | GL.BUZZBuzzer. Requires CP.BL accessory. |
 | GL.CABLE12Cable FG12 12 x 1.5 mmq. |
 | GL.CABLE16Cable FG16 16x1.5 mmq. |
 | GL.HEATHeater for bollard, active below 5°C. |
 | GL.PKEYM30Burglarproof screws. |
 | PO10Drainage pump. |
