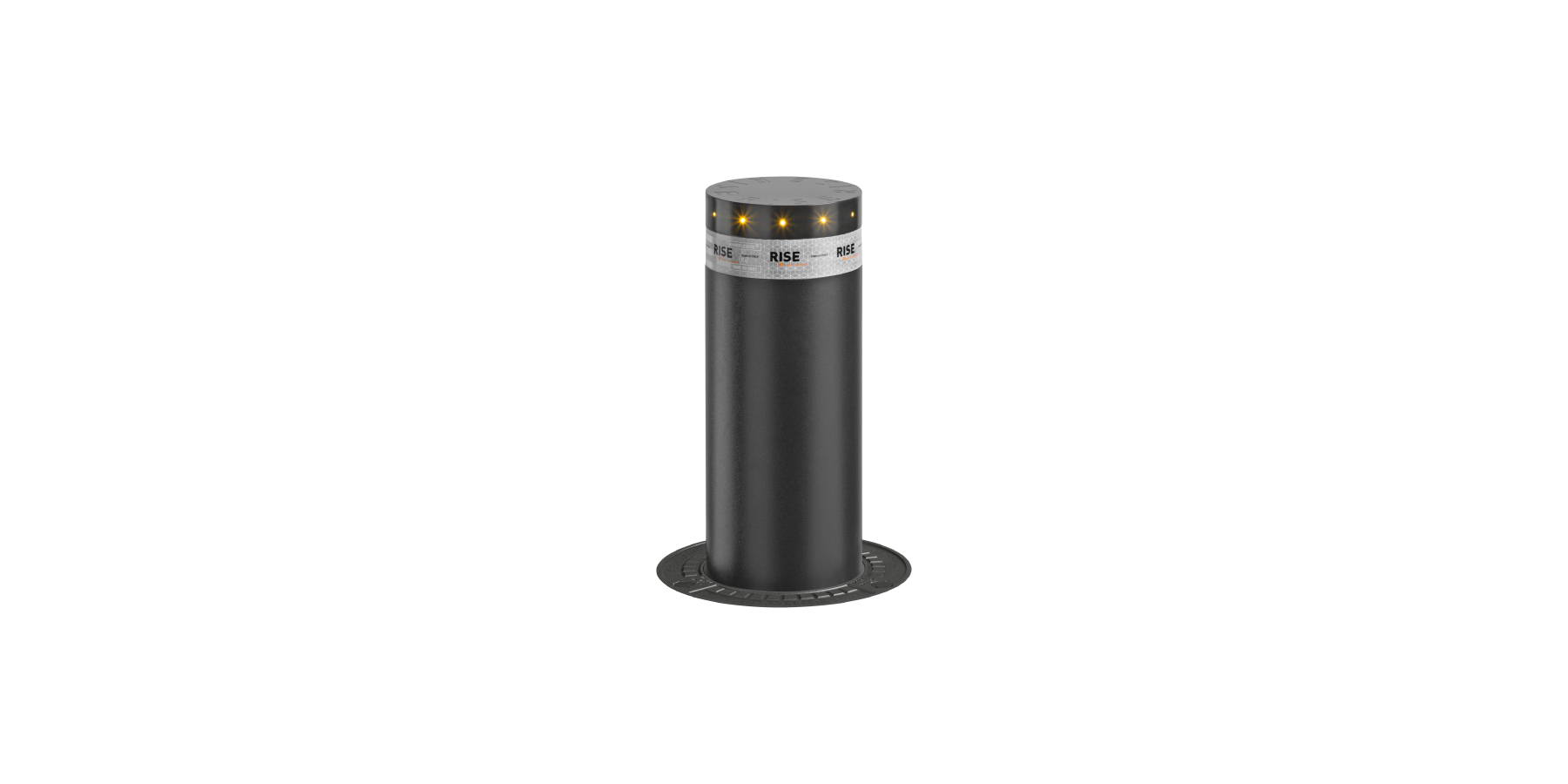

VIGILANT500/I OM.
External cylinder diameter
200 mm
Above-ground height
500 mm
Cylinder thickness
Powder: 8 mm Stainless: 9,2 mm
Traffic management
Suitable for traffic management (vehicles)
Public
Suitable for installations in public lands
Italian certification
Only for Italian Market
VIGILANT500/I OM.
• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP/IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm
• PLUG&PLAY Connection between bollard and control panel
• EN124 (40T) Top equipped with LED lights
| Cylinder height | 500 mm |
| Cylinder diameter | 200 mm |
| Raising time | 4 s |
| Lowering time | 3 s |
| Power Supply | 230 Vac / 50/60 Hz |
| Motor supply | 24 Vdc |
| Absorbed current | 6 A |
| Absorbed power | 90 W |
| Standby consumption | 10 W |
| Consumption during rising | 1 A |
| Daily cycles | 1,200 |
| Impact resistance | 11.000 J |
| Breakout resistance | 180.000 J |
| Operating temperature | -20°C / +50°C |
| Protection level | IP68 |
| Electric Brake | 5 N |
| Weight (without foundation box) | 84/90 kg |

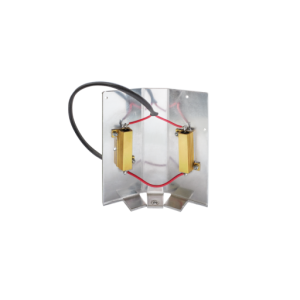

 | RESHeating resistance for cold areas (accessory supplied pre-assembled). |

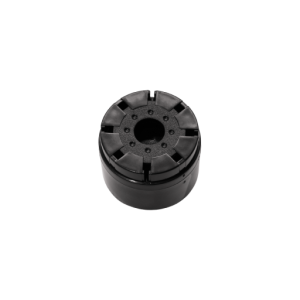

 | BUZZWarning buzzer (accessory supplied pre-assembled). |
 | KTOOLSSet of installation tools. |
 | CA500AFoundation box in steel with cataphoresis treatment for VIGILANT 500 / HYDRA 500. Quick assembly with screws. |

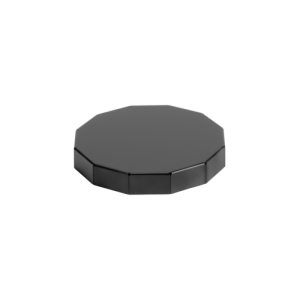

 | TOP20Cover for foundation box. |

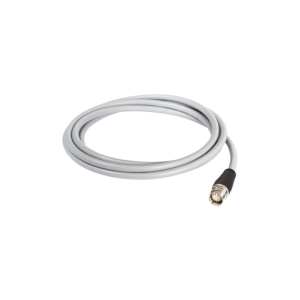

 | C05/10/15/20/25Cable with connector L= 5/10/15/20/25 m. |
